Brand Name : | HONGGU |
Model Number : | Mercedes Benz W164 ML & GL GL320 GL350 ML450 |
Certification : | ISO/TS16949 |
Price : | USD120-USD 210/PCS |
Payment Terms : | L/C, T/T, Western Union, MoneyGram |
Supply Ability : | 10,000PCS/Month |
Delivery Time : | 3-15 days |

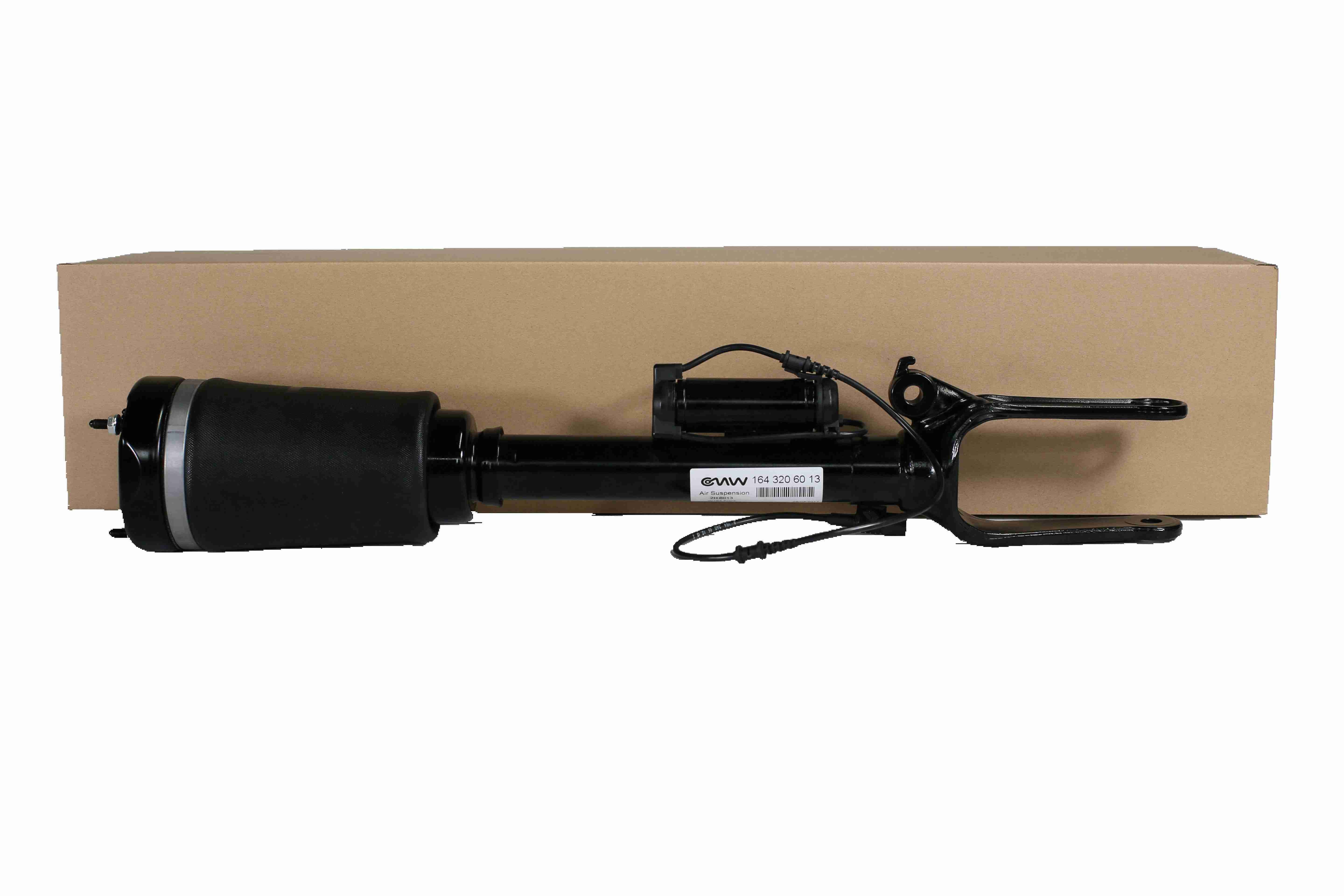

Front Air Suspension Shock Absorber Strut With ADS Mercedes Benz W164 643205813
Quick detail
Description | Brand New Mercedes Benz W164 ML & GL GL320 GL350 ML450 |
Model | Mercedes Benz W164 ML & GL GL320 GL350 ML450 |
OEM | 1643206013 1643202213 1643204313 1643204613 1643205213 1643205813 1643206113 1643204413 1643204513 1643205913 |
Condition | Brand New |
Fitting Position | Front Left and Right With ADS |
Material | Rubber+Steel+Aluminum |
Application | Front |
Application | Mercedes Benz W164 ML & GL GL320 GL350 ML450 |
Warranty | 12 months |
Delivery | 3-7 days after receiving payment |
Gross Weight | 7.5KG |
Fitment:
OE Number: A1643206013,1643206013;1643205913,1643205913;A1643205813,1643205813;A16432046131,643204613;A1643204413, 1643204413;A1643204313,1643204313;A1643202213,1643202213;A1643205213,1643205213.
Fit for Mercedes M Class W164 ML 300 4MATIC 2010-2011; Mercedes M Class W164 ML 350 2006-2011
Fit for Mercedes M Class W164 ML 500 2005-2007; Mercedes M Class W164 ML 500 4MATIC 2007-2010
Apllication(s):W164 ML& GL
Classification(s):Shocks,Shocks Airmatic,Spring&Suspension.
Air compressor
Air compressor Work
The air system works by pumping compressed air into air bags or springs made of textile-reinforced rubber via compressed air lines. The air compressor is an electric or engine-driven pump that’s usually attached to the car frame and found under the hood. It draws in outside air, compresses it, and uses the compressed air to fill the air springs to “lift” the vehicle’s chassis from the axle.
Aside from being the main part of an air system, air compressors are also coupled with air tanks in some vehicles. This allows the driver to inflate tires when driving off-road, for example. Air compressors can also be used to re-seat a tire that has slipped off of its rim. Air compressors also have a number of other pneumatic-type applications like maintaining the PSI for air horns, etc.
Air spring
Air springs contain a column of air in an elastomeric bellow or
sleeve to provide suspension, isolation, or actuation. Commonly
found in vehicle suspension systems, occasionally in conjunction
with a coil spring, they are also used to insulate vibration in
machinery and as linear or angular actuators
Air springs are employed through the use of an air compressor which
fills and empties the pliable air bladder. The load is not
distributed to the rubber liner, which only serves to contain the
gas; the weight is attached to a piston or bead plate, which is
directly supported by the air with very little deflection. A
self-leveling mechanism is common to keep the air spring's load
stable, and occasionally a separate coil spring is incorporated
into the design. Also available are electronic air spring systems
that can monitor air pressure, filter compressor air (preventing
damage to the rubber bellows), and a lock to keep air inside of the
spring in case of compressor or air line failure.
Air springs are most common in vehicle suspensions, but can also be
used to keep vibrating/rotating machinery from affecting other
components. Occasionally used as actuators, air springs can provide
linear and angular translation.
Types of Air Springs
Outside of custom fabricated air springs, there are three available
types of market-ready air springs.
1.Crimped, convoluted bellows, which attach the bellow to the bead
plate by a permanent crimp in the plate. These provide good
vibration isolation and linear/angular actuation, but are not for
vehicle suspensions.
2.Sleeve bellows, which attach the bellows to the bead plate by an
external clamp. This air spring type provides good vibration
isolation, but only linear actuation. They are not typical in
suspensions.
3. Rolling lobe bellows, which incorporate a piston at one end of
the bellows, rather than a bead plate. This is most commonly found
in vehicle suspensions, and is generally not recommended for
vibration isolation.
Air Springs Advantage
1. More driver comfort due to the reduction in noise, harshness,
and vibration on the road that can cause driver discomfort and
fatigue
2. Less wear and tear on the suspension system due to reduced
harshness and vibration of heavy-duty driving
3. Trailers last longer with air suspension spring because the
system components don't take on as much vibration
4. Air suspension spring reduces the tendency of short wheelbase
trucks to bounce over rougher roads and terrain when the vehicle is
empty
5. Air suspension spring improves the ride height based on the load
weight and a vehicle's speed
6. Higher corner speeds due to air suspension spring being better
suited to the surface of the road
FAQ
1. Are You Manufacturer Or Trading Company? |
Re: We Are Both Specialize In Auto Parts ( Air Suspension) Manufacturer & Trading Company. |
2. What's The MOQ? |
Re: The MOQ With Our Standard Products Is 1 Piece. |
3. What's Your Mainly Products? |
Re: We Supply Air Suspension Spring, Shock Absorber, Pressure Shocks, Air Pump etc. |
4. What's Your Policy On Warranty? |
Re: We Provide 12 Months For New Suspension Parts Products For Our Customers. |
5. Where Is Your Company? |
Re: Our Trade Office In Baiyun District ,Guangzhou; Our Factory Located At Shunde District Foshan City. We Warmly Welcome You To Visit With Us Anytime, More Details & Info Please Contact Us |
6. What Are Your Payment Methods? |
Re: We Accept T/T, Paypal, Western Union, Money Gram, Alipay. Due To Difference Payment In Difference Countries Or Regions. |
7. What's Your Packing Way? |
Re: Neutral Packing, Standard Packing, Accept Customers' Special Required. |
8. How Do You Usually Ship The Goods And When? |
Re: Normally, We Will Ship The Goods In 3-7 Days After Payment Verified And Goods Confirmed, And Ship The Goods Via The (HuangPu) Ports In GuangZhou. |
9. If You Offer The Free Sample? |
Re: We Accept MOQ 1 Piece Order, But Do Not Offer The Free Sample To Our Customers. |
Advantage
1. we are top 3 of professional air suspension manufacturer in
China.
2. our factory has 120 staff, and we only produce 100% newly air
suspension products for 10 years.
3. we have cooperated with 80 overseas companies with stable
relationships. many are also brands or big sellers at Amazon or
EBAY websites.
4. we have our own cars to test our products,except normal test
machine and IATF16949:2016 certificate standard.
5. we have complete production line, Mercedes Benz,BMW
Audi,Porsche,Land Rover,Volkswagen-these are our products,we has
complete products line.
6. Our air suspension/air compressor/air strut/air suspension parts
100% NEWLY manufactured to instead OEM
7. We manufacture air suspension/air strut/air compressor to
instead OEM ;
8. Constant temperature workshop for core parts;
9. Japan automatic welding machine to weld.
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as
cable, package bag, label or any where. Our OEM and ODM service is
always ready to do it. Please contact with our sales team to get
best support.
Packing:
- According to Standard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- International air: CA, AA, EA, etc
- By sea
- Standard export sea port: Huangpu, Hongkong, Shunde
- Standard export airport: Shenzhen, Hongkong, Guangzhou
![]() |
